Additional Systems
Line accessories for maximum grid reliability – system solutions that make all the difference
In addition to its proven core portfolio, Mosdorfer offers a range of intelligent supplementary systems and accessory solutions that further enhance the operational safety and efficiency of overhead power lines. Whether as a protective measure against phase collisions, to improve the visibility of lines, or for reliable power distribution in the low- and medium-voltage range – our complementary products are developed with practical applications in mind, built to be robust, and used worldwide.
Our auxiliary systems protect high-voltage lines from dangerous phase collisions, make overhead lines visible to air traffic, and ensure reliable power distribution in the low- and medium-voltage ranges. From interphase spacers and aerial warning balls to practical fittings – our systems are specifically designed to optimize existing infrastructure and support grid operators in coping with extreme environmental conditions. They ideally complement our main products – for a completely safe, stable, and low-maintenance power grid.
Interphase Spacer
Stability for overhead lines under extreme conditions
Wind, ice, and extreme weather conditions can cause high-voltage power lines to sway – sometimes so violently that phase conductors come dangerously close to each other or even touch. The result: short circuits, damage to infrastructure, and, in the worst case, power outages.
Mosdorfer Interphase Spacer (IPS) ensure that it never comes to that. They reliably keep the phase conductors apart – even in strong winds, during ice fall, or during so-called “galloping movements.”
Reliable technology, proven in the field
Our IPS systems have been in use worldwide for over 20 years—from Scandinavia to South America. They feature a modular design and can be flexibly adapted to different bundle configurations (single, double, triple, or quadruple conductors) and phase arrangements (horizontal, vertical, or delta).
Advamtages at a glance
- Short-circuit protection: Prevents phase collisions caused by wind-induced vibrations or ice fall.
- Versatile: Adaptable to various conductor sizes, spans, and configurations.
- Easy to install: Features well-designed installation aids and clear placement recommendations.
- Robust and durable: Corrosion-resistant materials, UV- and ozone-resistant bearings, reliable operation from -30°C to +80°C.
- Central bearing technology: A special rubber bearing with an integrated steel tube ensures controlled movement and reduces stress in the system.
Ready for any challenge
Whether in extreme temperatures, under high mechanical stress, or in hard-to-reach terrain – Mosdorfer IPS units are designed to function reliably even under the most demanding conditions. They not only protect the lines but also enhance the operational safety of the entire network.

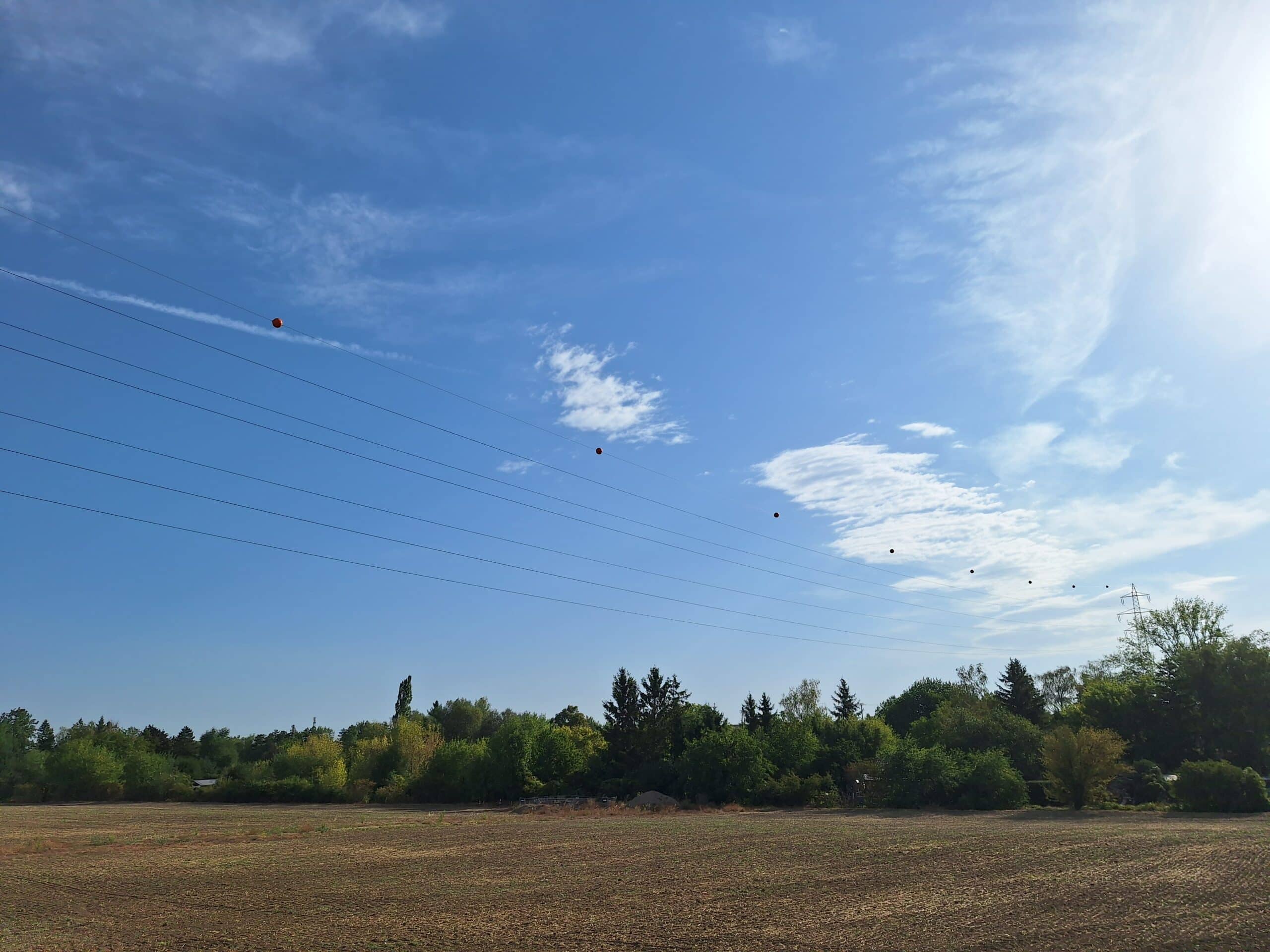

Marker Balls
SPHERA® – the innovative marking system for high-voltage power lines
Mosdorfer is the exclusive distributor of the SPHERA aricraft warning marker ball – the new generation of marker balls for high-voltage power lines, developed by MS Design. They were specifically designed for quick, safe, and cost-effective installation. Thanks to maximum visibility, the highest level of safety and particularly efficient installation, SPHERA offers a forward-looking solution for marking overhead lines, ground wires, OPGW cables and other aviation-related infrastructure.

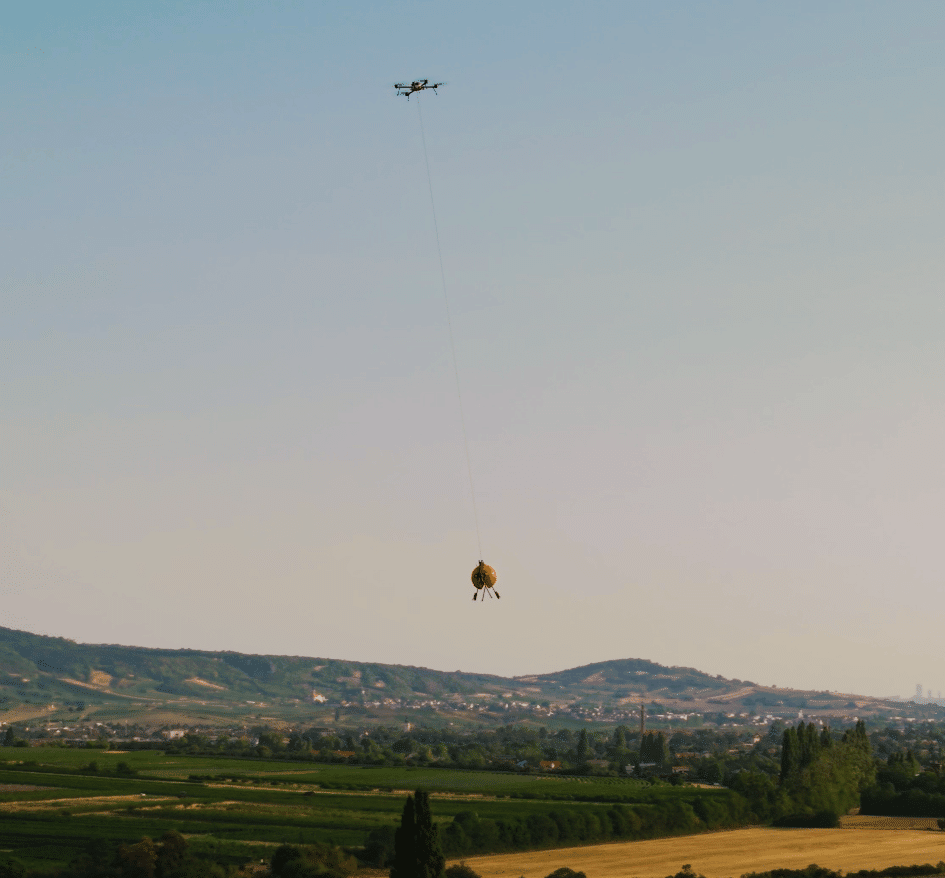

In combination with the FulcrumAir marker ball LINEFLY™, SPHERA also stes new standards for installation. Assembly and installation are carried out automatically, precisely, quickly and safely directly on the line using a drone and a robot. Helicopters, bucket trucks or line carts are not required, meaning installation teams can remain safely on the ground. Installation is even possible on live lines.
Benefits at a glance:
- Up to 70% shorter installation time compared to conventional methods
- Installation of a marker ball in just around 5 minutes
- Over 30 marker balls installed per robot per day
- Up to 90% lower CO₂ emissions compared to helicopter installations
- Sphera is available in sizes 300 mm, 600 mm and 900 mm
- Modular clamping system for conductor diameters from 15 to 55 mm
- No need for time-consuming installation of protective spirals
- UV-resistant, solid-coloured material for long-lasting visibility
- Five standard colours available (custom designs possible)
- Optional integrated transponders
Recycled material is used for the base plates of Sphera, and specially positioned drainage holes prevent the build-up of condensation or ice. This ensures that the conductors are not subjected to any additional strain.
Manufactured in Austria and TÜV-certified, these marker balls are the result of years of practical experience and offer a durable, safe and environmentally friendly solution.
Low- and medium-voltage Fittings
Reliable power distribution up to 45 kV – with a systematic approach
Mosdorfer offers sophisticated solutions for power distribution in the low- and medium-voltage ranges. Our portfolio includes components for insulated and non-insulated overhead lines – from fittings and insulators to protective devices and accessories. Whether for urban grids, rural areas, or industrial applications, our products ensure a stable, durable, and low-maintenance power supply.
Complete solutions for distribution networks
We supply not only individual components but also customized system solutions that are precisely tailored to the requirements of energy suppliers and grid operators. This means fewer interfaces, faster implementation, and greater reliability.
Strong connections – even at the joints
Connections are often considered a weak point in the grid. Not with us: Mosdorfer offers a comprehensive range of cable lugs and connectors for copper, aluminum, and bimetallic conductors – tested, durable, and suitable for all common grid voltages.
Your benefits at a glance
Versatile applications
Solutions for insulated and non-insulated low- and medium-voltage overhead lines
Modular & combinable
Components that can be flexibly integrated into existing systems
Easy to install
Well-thought-out design for simple and safe installation
Robust & durable
Corrosion-resistant materials and tested quality for continuous use
A partner on equal footing
Fast delivery, technical advice, and customized packages for your project.
Would you like to learn more about our products? Be sure to visit the following product pages:
String Fittings
Our string fittings and connection systems ensure that high-voltage overhead lines operate safely and efficiently under all conditions—whether in high-voltage direct current (HVDC) or high-voltage alternating current (HVAC) transmission.
Damping Systems
Our custom-designed damping systems—ranging from vibration dampers to damping spacers—reliably protect cables against wind-induced vibrations, partial-field vibrations, and cable sway. Using state-of-the-art simulations, field tests, and real-time measurements, we develop solutions that are precisely tailored to your infrastructure.
